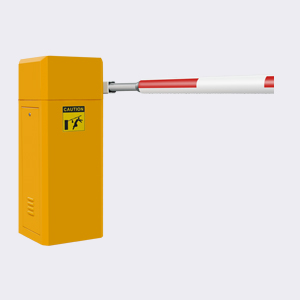

Kev kub ceev hu rooj vag tsheb Boom caj npab Barrier rooj vag

GSHuTej
Qauv: hu

Hu tejHauj lwm yam khoom
GS kev loj tej calledtollway thiaj li tseem barriershas tsim los rau cov xov tooj hu daim ntaub ntawv, tshwj xeeb tshaj yog highways/motorways barrier ib cov kev kub ceev, nov kev cia siab rau, endurance and lub tshuab uas tswj kev tsev tsheb loj puas muaj tseeb yog qhov tseem ceeb.

Kev loj GS barrierpermits luv qhib thiab closingtimes tus barrier boom bouncing hauv lub kawg txaus qhia tsis tau. Lawv qib locks thebarrier boom ntawm ob leeg txaus qhia tag. Hauv theevent muaj hwj chim tsis ua hauj lwm, tus caj npab barrier yuav siab qhib los yog tag nrho hauv kaw li yeem.

Lawv tsav tag txuas mus thebarrier tsev nyob raws li hauv chav tsev ib zaug xwb, thiab yuav tau yooj yim
raug tshem tawm ntawm lub tsev yog removingthe mounting screws. A ua rau lub caij nplooj ntoos hlav mechanism muab ib tug precisecounterbalance qhov barrier boom. Tus springs yog koom xwm txheej kom sib haum
nrog cov boom ntev ua ntej tus me nyuam. Ifnecessary, lub springs thiaj yuav yooj yim insitu pib dua thaum lub caij los ua ke, rau piv txwv yog lub barrierboom zog los yog pom cov qhov boom attachedto.

Hu tejKev tsis tseem ceeb

• Ntev ntau boom: 2500 hli/3500 hli

• Qhib thiab kaw thaum tsawg teev: 0.9s/1.4s

• Voltage mov: 220V/230V

• Zaus: 50 xyoo / 60Hz

• Faiv fab noj: 80W

• Nyob teb ceev: 30 r/min

• Nyob torque: 20N·m

• Suab nrov nrov ntawd lub lag luam: ≤60dB

• Tsev: dav: 350 hli

• Qhov tob: 350 hli

• Hli qhov siab: 1010

• Luj tsis xws li barrier boom: 55kg

• Kub Ambient:-40ºC ~ + 75ºC

• Vaum tus txheeb ze: 50% ~ 90%

• Atmospheric siab: 86Kpa ~ 106 Kpa

Hu rau tej Technology

• Adopts qhia tshwj xeeb uas-tsim AC220V torque tsav. Tshuab nkawm tsis pub ua hauj lwm uas tej zaum yuav nres ntawm txhua txoj hauj lwm thiab yuav muaj los tsis ua. Thaum nws tseem nyob rau ob hnub tus tsav lub fais fab yuav tsum raug txiav txiav rau 20W nws yuav txuag lub zog zam tau rau tej yam kev mob hws thiab corrosion tshaj tej ntawm nws nquag ua hauj lwm rau lub caij ntuj no;

• Chav tsav employs sine generator rau tus ceev-down ntaus ntawv yog muab tshem tawm kom tau cov qauv ua ntau compact thiab tsim nyog; nws heev txog cov neeg kho tshuab failures

• Rau cov qauv thaiv tshwj xeeb yuav pab kom tsis txhob muaj cov instant hnyav tam sim no thiab instant voltage fluctuation nyob rau lub caij uas siv fais los yog rhuav nws tej zaum yuav ncaj qha powered ntawm ib ce thiab lwm equipments nyob hauv lub hwj huam tib network yuav tsum nquag ua hauj lwm.

• Lub tsev no yog los ntawm steel lub log tshwj xeeb thiab nws yog pleev xim rau ntawm bisque los yog nacarat muaj chav kawm ntawv xim uas tej zaum yuav tsis tsuas tiv thaiv corrupting tab sis kuj yuav tsis txhob fading rau lub ultraviolet tawg. Nrog txhua yam hais los kho los ntawm electrogalvanisation.

• Qhov rooj txuas muab saib rau qhov mechanism, muab tub yog qhov tseem ceeb.

• Aluminium raj boom npab, varnished dawb nrog reflectingstripes liab thiab xaus-sealing.

• Boom caj npab viav-tawm, tsis txhob puas barrier rau hauv ntaub ntawv ofimpact rau cov boom caj npab.

• Caj npab los ntsuas springs.

Hu tejLub ntsiab nta

* Adjustable high-speed, ruaj khov, thiab applied rau ETC tsis Other them lawv;

* Torque iav tsav siv, kom cov barrier ruaj thaum twg tus tsav khiav dej num tsis ceev;

* Kev ua los tiv thaiv smash tsheb: cov boom yuav sawv (ib kab rov tav kaum sab xis saum toj 15 °) txais thaum lub tsheb sau lub voj tebchaws cheeb tsam, thiab yuav tiv thaiv tau lub tsheb los rau smashed;

* Muaj nuj nqi los tiv thaiv kev sib tsoo: yog ib tug rotator siv cov boom thiab axis. Cov boom yuav nres/tig tseg thaum ntaus tau lub tsheb. Tus barrier yuav sawv tseem thiab twg thiaj tsis muaj mob.

* Cov boom yuav tsum uplifted manually on the occasion of muab hwj huam thiab lawm.

Kev kub ceev uas kaw andamp; qhib: 1.2 thib ob

• Ncaj boom armMax.length 3m;

• Inclusive of npab × 1 thiab laub khawm × 1 uas opens/muab kaw barrier

• Yeem tsev xim li (vim) daj / kab ntxwv / dawb / xiav

• Kev taw qhia caj npab boom yeem ua leftward/rightward

• kev kub ceev thiab cov dej num 100% cycle zov me nyuam uas muaj 5 vam MTBF

Tsav dawb-tu torque Saib kuas 100% plaub ntug mus los zov me nyuam uas muaj 5 vam MTBF. Torque tshuab yog environmentally tus phooj ywg, txuag zog thiab tsis pub nkawm. Tsis muaj kev poob siab thiab overheating thaum ua hauj lwm, nws tivthaiv ntawm xws li thiab cas sim haum nws lub neej. 0.8 fiab ceev tshaj qhib/kaw lub sij hawm rau hu rooj vag thiab chaw nres tsheb ntau wth cov tsheb loj txaus.

• Heavy-duty, tej huab cua thiab yooj yim tsim vaj tsev

Lub tsev adopts 2 hli leej machining khaub thuas-kuav los tiag phaj thiab static hluav taws xob los mus txuag rau anti-UV qhov chaw uas yog cov-teev thiab unfading, conformed IP54 dustproof thiab waterproof. Tej yam yooj yim tsim tseem decorates koj lub tsev.

• Sine qib tsav mechanism Saib kuas du yuav tsaws ntawm boom tsis tau tuav

Patented leej casting sine qib tsav mechanism enables cov boom caj npab xyaum qeeb cauj thaum nws pib, thiab ceev kom thaum twg nws tsis lawm. Qhov no yuav muaj txo tus tuav ntawm cov boom caj npab thiab allay cov xwm txheej ntawm cov tshuab hluav taws xob, kom lub cev muaj zog thiab neeg kho tshuab Cheebtsam tseem yuav raug heev ntev lawm.

• Boom yeej qhib mas los kaw thaum fais fab tuag tsis ua hauj lwm

Yog fais fab tuag off dheev thaum kaw boom, boom yuav kaw yeej down mas yog lub kaum sab xis ntawm cov boom thiab dav hlau ntsug dhau 45 kawm ntawv. Yog fais fab tuag tsis ua hauj lwm thaum lub caij qhib boom boom yeej yuav qhib mas yog lub kaum sab xis ntawm cov boom thiab qib nto tshaj 45 degrees.

• Kev sib tsoo los tiv thaiv tiv boom npab (optional)

Kev sib tsoo los tiv thaiv tiv cov boom caj npab tsis mus yuav zaub tom qab caj npab boom ntawd collided yog ib lub tsheb.

• Kev ruaj ntseg ntawm andquot; Anti-hitandquot; ---Voj ntes

Thaum barrier boom mus thiab, yog hais tias ib lub tsheb tom ntej yog kuaj kom yuav uas twb muaj lawm hauv cov av induction kauj, ntawm caj npab yuav rov qab mus rau txoj hauj lwm txoj sai ntej tswv yim ntawv cov voj twb dhau los tso thiab ces tus caj npab yuav nqes tam sim ntawd.

• Kev ruaj ntseg ntawm andquot; Anti-hitandquot;---thaws raws li qhov chaw khuam siab

Thaum mus, boom caj npab yuav tam sim ntawd rov los ntsug txoj hauj lwm tom qab nws yog obstructed los ntawm ib tug imposed quab yuam, uas tiv lub tsheb los yog tus neeg tsis tau ntaus tau boom caj npab. Tus neeg mob yog adjustable.

• Kev ruaj ntseg ntawm andquot; Anti-hitandquot;---Infra liab (optional)

Thaum mus tom qab lub tsheb dhau, boom caj npab yuav tam sim ntawd rov los ntsug txoj hauj lwm thaum IR tau ntawm cov receiver thiab transmitter yog sim los ntawm ib lub tsheb los yog tus neeg, uas tiv lub tsheb los yog tus neeg tsis tau ntaus tau boom caj npab.

• Yeej nyob ze voj ntes (optional)

Yog tias cov voj ntes yog ntsia, tom qab tau kis tus barrier tsheb yuav yuav kaw thaum lub voj input yog triggered

• Yeej qhib ua voj ntes (optional)

Yog tias cov voj ntes yog ntsia, thaum barrier boom txhawb, tus barrier boom yuav nce tam sim ntawd thaum uas lub tswv yim ntawv cov voj triggered

• Nco ntsoov-qhib hom

Yog 'qhib' hais kom ua kom ua hauj lwm (yog tujtaws nias "" qhib) los yog RS485 hais kom ua tau teem rau ib txwm-qhib hom, tus barrier yuav las mees tas 'ze' hais kom ua thiab nyob ntawm lub chaw ntsug, tshwj tsis yog hloov tus pej xeem Mes Kas.

• Yeem tswj txoj kev

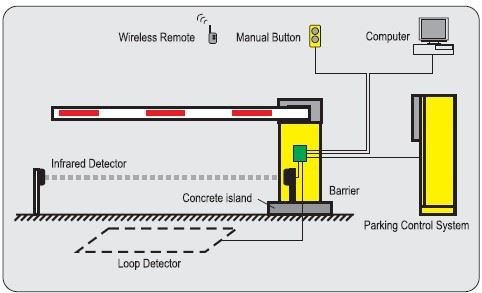

Yog peb txoj kev los tswj cov barrier lub zog, namely, laub khawm, tswj chaw taws teeb thiab RS485 serial hais kom ua.

• Pob tshab yas yog siv rau hauv pawg tswj

Ib pob tshab yas npog rau ntawm lub Rooj Tswjhwm Saib tswj kom ua pawg tswj dej pov thawj thiab plua tshauv pov thawj uas, kuj tiv tswv.

• Los tiv thaiv hws nyob txias kev nyab xeeb

Tus barrier tshua uas tsis muaj zog noj haus li ntawd twb tsis kaw thiab qhib tawm tswv yim, uas yuav pab tau kom tus tsav hauv qhov kub. Cov roj nplua nyeem yuav tsis tau khov kom cov barrier yuav kom ua hauj lwm hauv chaw khov.

• Tub sab thiab tamper resistant, tsis sab nrauv mounting bolts.
