Access Control ntawm RFID los yog BiometricTripod Turnstile tuabneeg rooj vag

GS KOS TURNSTILE SERIES

KOS TURNSTILE YL121

Nqe lus piav khoom kos Turnstile

Koob GS ntawm turnstiles kos yog tsim los tswj cov neeg taug kev teebmeem chaw ruaj ntseg tswj tau tus mob. Tus txheem qauv muaj ib kem (txoj kab) dav 520 hli thiab txog puas muaj tsheb yuav tau 600 hli.

GS tsim lub kos turnstiles yuav siv daim ntaub ntawv tiv thaiv lis-directional nrog kub ntim neeg taug kev tsheb khiav. Chav tsev twb tau tsim nqi zoo anti-tailgating neeg taug kev tov siv khiav ib tri-npab bar configuration nrog 3 * 120 ° zog.

Kev ua: Zaj nyob hauv ob lus qhia, hauv tshuab computer controllable

Mechanism: Tswj ntawm lub lag luam kos yog tiav los ntawm ib tug electro-txhua yam lub taub hau mechanism nyob tsis pub dhau lub sab sab saum toj ntawm qhov turnstile casework. Nws comprises cov yam ntxwv txheem nram qab no:

• Tus zoo xauv tes hauj lwm uas tsis pub ob ntawm daim zajlus hauv ua ke

• Court centering mechanism kom muaj kev sib hloov kiag ntawm lub mechanism los ntawm txoj hauj lwm hauv tsev

• Kev ntaus thaub qab los tiv thaiv kom tsis txhob ua teb thim rov qab thaum lub mechanism tau txav chaw lawm 60 ° ntawm lub tsev

Kos Turnstile lub ntsiab kev tsis

1. zaj dav: ≤600mm, Max. 45 coob uas xam nrog/min

2. lwm Dimension: 1200x280x980mm

3. voltage: AC85-265V, 50HZ, lub cev muaj zog: 0.5N•M / 24V DC

4. cov tswv yim: Cuag qhuav

5. kev sib txuas lus Interface: RS485 txheem; Ntau yam kev sib txuas lus ≤1200M

6. ua hauj lwm cheeb tsam kub:-25℃ — + 65℃, hauv tsev thiab Outdoor siv IP54

Specification

7. nrov theem < 55dBA; Vaum txheebze andlt; 95%, tsis muaj lwg

8. faults kom paub tias yus thiab tswb hluav taws nco caj npab interface

9. yam ua hauj lwm raws li txoj cai pom tau hais ntawm ntau txhua yam qauv rau kev xaiv

• ib way ntawm daim card nyeem ntawv/ib way tsis nkag

• txoj kev coj los ntawm daim ntawv nyeem

• ib qho kev daim ntawv no nyeem ntawv/ib kev dawb do (w/ los w/o thawb khawm)

• txoj kev coj dawb do (w/ los w/o thawb khawm)

10. muaj txheem RS485 kev sib txuas lus interface
11. muaj LED lawm yeej
12. systems yeej reposition yog neeg nrog caij xeem rau nqi lub sij hawm, defaultsetting 10swith cim xeeb zoo rau daim ntawv nyeem
13. kis 3,000,000 nruam ntawd tsis yog koj tsis
14. GS Series kos turnstiles yuav tsis eaily inferface nrog rau:

• Biometric kev koom ua ke

• Nyeem daim ntawv

• Npib/token Acceptors

• Qhia cov computer Systems / pib Scanners

• Hauv / txhee LCD

• Push-Button thiab Wireless Remotes

Kos TurnstileDaim ntawv no nyeem ntawv Mounting
Deg mounting tsuas cov neeg nkag nyeem

Kos TurnstileRaws li txoj cai teeb
Raws li qhov tso tus xub ntsuab yuav taws hauv cov kev taw qhia txog zaj tso whilst khiav hauv kev tus ntoo khaub lig liab cim yuav taws los qhia tias lub tsev yeej tsis muaj kev siv los yog twb siv.

Kos TurnstileLaub khawm Control
Tej yam yooj yim laub khawm Console

Kos TurnstilePab kom(Optional)
Nws tseem muaj los xam tau cov neeg ua hauj lwm dua los ntawm tus zaj thiab tso saib hauv LED ncaj qha rau tus neeg khiav dej num, leej twg yuav to taub kom meej meej cov neeg ua hauj lwm dua nyob ib yam li siab xav.

Kos TurnstileTee caj npab

Thaum muaj ti tes ti taw los yog kev rho tawm ntawm cov hwjchim mov ntawm kos kab rov tav caj npab yuav poob yuav los ua ib tug ntshiab walkway rau txoj kev khiav.

Kos TurnstileTxhua yam kev lag luam
Muab tub tsis-hluav taws xob nyob tas dawb zog hauv ib li siab xav-nraud li siab xav

Kos TurnstileTswj hluav taws
Tau kawg far tswj muaj nuj nqi rau down/tu qws rau raws li qhov yuav tsum tshwj xeeb rau cov neeg thiab cov tiv thaiv hluav taws

Kos TurnstileNyeem daim ntawv W/O nco
Nws muaj ib tug muaj nuj nqi uas nyeem daim card los yog tsis nco, thiab nws yuav muab teem nrog tus built-in me me keyboard raws li txoj cai rau cov neeg siv yuav tsum

Kos TurnstileCov neeg muaj xws li
Tsoom fwv xws/hais txog nyiaj txiag/Telecommunications/kev siv Technology /Banking /Publishing
Leisure/Petrochemical/kev kawm ntawv thiab lwm yam.

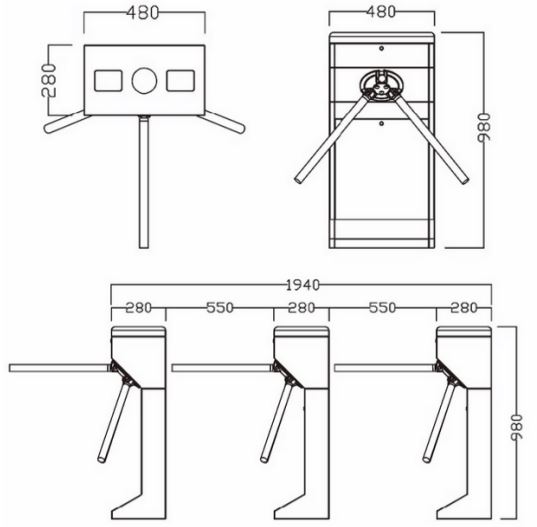

Kos Turnstile YL121 Layout daim duab

Xws li Turnstile lub kos

Kos Turnstile plahaum dluab
