GS349 Turnstile viav vias rooj vag

Thov ntseeg tias peb lub tuam txhab muaj lub luag haujlwm zoo tom qab muag, muab cov khoom lag luam zoo, ncaj ncees thiab tsim nyog tus nqi, cov neeg ua haujlwm muag khoom ua siab ntev lub luag haujlwm rau 24 teev online, nyob rau hauv txoj kab nrog tag nrho koj cov kev xav.

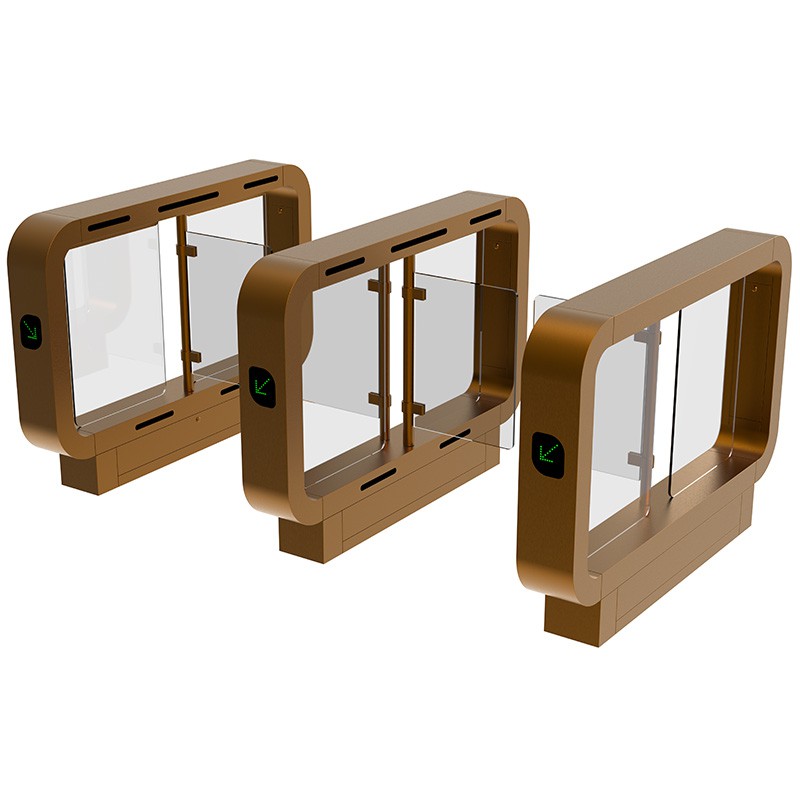

GS349 TURNSTILE swb rooj vag

1. Loj: 1310 * 200 * 1000 mm (tuaj yeem kho tau)

2. Txoj kab dav: 600 mm (tus qauv) 900 mm (Handicapped)

3. Arm Material: 10mm Acrylic

4. Kev ceev: 35 tus neeg / min

5. Fais fab mov: 110 V / 220 V 50 / 60 Hz

6. Mechanism: DC Brushless lub cev muaj zog mechanism

7. Tsav Tsav: 24V

8. Lub rooj vag qhib teeb liab: Qhuav hu / Relay

9. Nrog 5 khub ntawm sensors

TURNSTILE SWING GATE GS314 muaj 2 xyoo lav thiab ruaj khov kho thiab txhawb nqa.

Peb tuaj yeem muab kev pabcuam OEM thiab ODM. Peb muaj cov kws tshaj lij tsim qauv uas tuaj yeem ua tiav kev sib sib zog nqus raws li koj xav tau. Peb yuav muab cov khoom siv ntau yam xws li 3D renderings, kos duab kos duab, thiab lwm yam sai li sai tau. Peb kuj muab cov khoom siv biometric, xws li IC / ID daim npav nyeem ntawv, ntsuas ntiv tes, QR code scanners, lub koob yees duab paub lub ntsej muag, thiab lwm yam. Yog tias koj xav tau kev koom ua ke cov cuab yeej no rau ntawm qhov siab siab turnstile rooj vag lossis muaj lus nug, thov hu rau peb

Turnstile viav vias rooj vag yog ib qho ntawm feem ntau siv cov neeg taug kev nkag mus tswj turnstile rooj vag, uas yog ib qho khoom kho dua tshiab ntawm lub rooj vag ntse tripod turnstile. Nws yog cov khoom siv high-tech feem ntau rau kev tswj xyuas ntse ntawm cov neeg ua haujlwm nkag mus tswj.Txoj kab kev hla yuav raug tswj los ntawm cov logic ntawm cov sensors. Tsuas yog thaum lub optical viav vias barrier turnstile tau txais lub teeb liab qhib, qhov kev nkag mus tau dawb. Yog tsis yog, lub sensor yuav ua rau lub tswb.

Lub rooj vag viav vias turnstile tuaj yeem tiv thaiv kev sib tw. Yog tias ib tug neeg nkag mus nrog daim npav siv tau, lub tswb yuav ceeb toom rau cov neeg ruaj ntseg. Lub viav vias barrier turnstile yog qhov kev xaiv zoo tshaj yog tias koj xav tau koj qhov chaw kom muaj qhov qhib. Nws tuaj yeem ua kom ceev cov txheej txheem nkag. Lawv tuaj yeem nyob hauv ob qho tib si kev khiav.

Lub sensor feem ntau siv los ntawm optical turnstile viav vias rooj vag yog qhov sib txawv photoelectric sensor, uas tuaj yeem paub qhov tseeb ntawm tib neeg lub cev. Lub viav vias barrier turnstile rooj vag yog nruab nrog ntau pab pawg ntawm hluav taws xob sensors kom paub txog kev nkag siab ntawm tib neeg. Nws yog tsuas yog nyob rau ntawm lub qhov rooj nkag, lub sector ntawm lub tis pas nrig, thiab lub rooj vag tawm. Txhawm rau kom paub qhov tseeb, qee lub rooj vag kho qhov muag teeb tsa cov sensors ntawm qhov siab sib txawv ntawm txhua qhov.

Qhov noOptical Turnstileyog ib tug slim turnstile viav vias rooj vag. Tus txheej txheem relay thiab RS485 interface ua rau nws sib xws nrog txhua qhov kev tswj hwm kev nkag, xws li RFID daim npav system, lub ntsej muag lees paub, ntsuas qhov ntsuas kub, npib ua haujlwm, Bar code System, thiab ESD Tester Access Control. Lub viav vias turnstile rooj vag yog ib qho kev sib cog lus thiab raug nqi nkag.

Tag nrho cov qauv ntawm turnstile viav vias rooj vag, thiab cov rooj vag nrawm tuaj yeem kho raws li koj qhov xav tau tiag tiag. Qee cov qauv ntawm turnstile viav vias rooj vag thiab zawv zawg rooj vag turnstile tuaj yeem yog 900mm qhov dav dav thiab. Access Control Pedestrian Security Turnstile Gates iav Optical Turnstiles Ceev Rooj vag.

Peb tseem tuaj yeem tsim qhov rendering rau koj li ntawm ob peb feeb raws li koj qhov xwm txheej tiag tiag. Peb kuj muab cov ncauj lus kom ntxaws layouts thiab kos duab, nrog rau kev teeb duab kos duab.

Thaum muaj xwm txheej ceev, txiav tawm lub hwj chim, Slim turnstile viav vias rooj vag yuav qhib tau txais kev tso cai pub dawb uas ua raws li cov kev cai ntawm kev nyab xeeb hluav taws. Tab sis nws yuav tsum tuaj nrog lub roj teeb. Raws li kev xa tawm, lub roj teeb rhiab heev, peb tuaj yeem siv lub capacitor los hloov

Kev ntseeg ntawm lub tshuab: 3 lab-5 lab, tsis muaj qhov txhaum

Lub anti-ntaus mechanism, yuav rov pib dua thaum ntsib kev quab yuam

LED teeb ntawm caj npab yog xaiv tau

LED sideboard

Kev taw qhia ua haujlwm: Bidirectional / Ib qho kev taw qhia

Qhov xwm txheej kub ntxhov: qhib tau txais thaum hluav taws xob raug txiav tawm nrog lub capacitor

Humidity: Tsawg dua lossis sib npaug rau 90%

Qhov hnyav: 70 kg / pcs

Ua haujlwm kub: -20 degree -60 degree

Kev sib txuas lus nrug: Tsawg dua lossis sib npaug li 1200 m

Kev sib txuas lus interface: RS485

Feature: IC / ID nyeem ntawv, Barcode Reader, Lub ntsej muag lees paub, ntiv tes, lwm yam khoom siv tswj kev nkag, UPS, thiab lwm yam

Lub sijhawm xav tau qhib: 0.2 s

Daim ntawv thov ntau yam: Zej Zog, Hoobkas, chaw ua haujlwm, Tsev Kawm Ntawv, Qhov chaw ntawm lub tsev so, thiab lwm yam

Kev ua haujlwm ib puag ncig: Sab hauv

Turnstile viav vias rooj vag yog tsim rau cov khoom kim heev thiab high-end nkag kev daws teeb meem.

Cov khoom siv: 304 stainless hlau thiab acrylic dub

Tag nrho cov kab ke ua haujlwm zoo, nrog lub suab qis, thiab kev kub ceev.

Tswb muaj nuj nqi, yog hais tias muaj ib tug txhaum cai intrusion thiab thim rov qab intrusion, lub rooj vag yuav tswb thiab lub qhov rooj yuav xauv.

Muaj tag nrho ntawm 5 khub ntawm infrared sensors Qhov nruab nrab sensor yog los tiv thaiv pinch pedestrians.

Anti-tailing muaj nuj nqi, ib tus neeg tuaj yeem dhau ntawm ib zaug. Yog hais tias ib tug neeg tails tom qab cov neeg pem hauv ntej, lub rooj vag yuav tswb

LED qhov taw qhia. Red Cross thiab ntsuab xub. Kuj tseem muaj qhov taw qhia LED nyob rau pem hauv ntej ncej. Lub teeb LED tuaj yeem ntxiv rau ntawm caj npab.

Kev nkag mus rau ob qho tib si txo qhov kev xav tau ntau lub rooj vag. Nws yog haum rau lub rooj zaum log, khw stroller nce kev ua haujlwm dhau.

Tsis siv neeg rov pib dua muaj nuj nqi. Yog tias cov neeg tsis dhau lub sijhawm preset (lub sijhawm ua haujlwm yog 5 vib nas this), lub kaw lus yuav tshem tawm txoj cai ntawm tus neeg siv thiab kaw cia.

Anti-bump, Anti-clamp, Cov khoom siv kho qhov muag tuaj nrog lub cev tsis muaj zog. Thaum lub sijhawm ua haujlwm, yog tias ib tug neeg ntaus caj npab, lub rooj vag yuav rov pib dua. Qhov kev ua haujlwm no zoo tiv thaiv cov neeg taug kev tshwj xeeb tshaj yog menyuam yaus los ntawm kev tsoo, clipping, tawm tsam, thiab lwm yam.

Peb tuaj yeem muab tag nrho cov kev ruaj ntseg nkag mus tswj kev daws teeb meem. Yog tias koj muaj koj tus kheej nkag mus tswj qhov system, koj tuaj yeem siv peb lub rooj vag turnstile ncaj qha. Yog tias koj tsis muaj ib qho, peb kuj muab cov kev tswj xyuas kev nyab xeeb tiav. Thov mus saib hauv video hauv qab no kom paub meej.
