GENERAL SYSTEMS yog ib qho ntawm cov ua x-ray tshuaj ntsuam xyuas qhov chaw kuaj xyuas kev ruaj ntseg manufacturers thiab cov chaw muag khoom, txais tos tuaj saib peb lub vev xaib thiab yuav lossis muag peb pheej yig x-ray tshuaj ntsuam xyuas qhov chaw ruaj ntseg ntawm tus nqi qis.
X-ray Scanning system rau checkpoint kev ruaj ntseg
GS5030C yog qhov kev tshuaj ntsuam X-ray ua tau zoo tshaj plaws hauv nws chav kawm, nrog ntau dua 25,000 kev teeb tsa thoob ntiaj teb.
Nws yog qhov zoo tshaj plaws rau kev tshuaj xyuas cov khoom ntiag tug thiab lub hnab ntim khoom hauv tsev ntawm cov chaw kuaj dav hlau thiab cov chaw nkag hauv tsev.
Cov ntaub ntawv yooj yim
Qauv TSIS MUAJ: GS5030
Daim ntawv ceeb toom:Tso lub tswb
Qhov Loj:(W) 530 X (H) 335mm
Kev nkag mus:40mm hlau
Hlau daws teeb meem:40 AWG
Console:Multi-Functions Muab tso rau sab
Saib xyuas:19inch ib
Tshuab Ncej:Stainless hlau khoom
Scanning duab:High Clear Xim thiab B / W
Keyboard:Waterproof thiab kov nas
Kev them nyiaj yug fais fab (yeem):UPS lossis Powerstabilizer
Cov cim lag luam:SECU STAR
Thauj Pob:Ntoo Ntim
Specification:CE ISO
Keeb kwm:Tuam Tshoj
HS Code:9022191090
Product Description

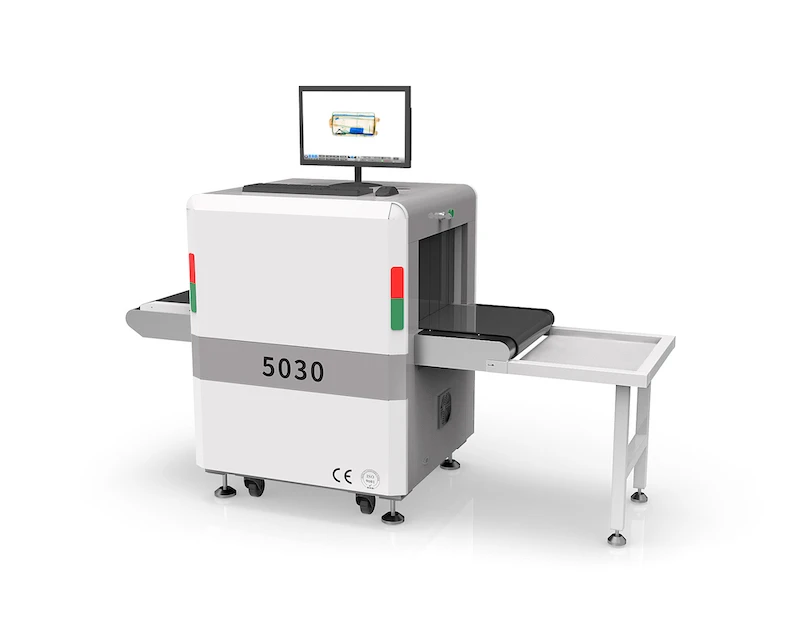

X-ray Baggage Scanner
General Specification
Qhov Loj: 505 (W) * 304 (H) mm
Conveyor Ceev: 0.22m/s
Conveyor Max Load: 170kg
Dose per Inspection:<1.7μgy>
Resolution: 38AWG Guarantee 40AWG typical
Spatial daws teeb meem: Qib: dia1.0mm, Vertical: dia1.3mm
Kev nkag mus: 32mm Steel
Zaj duab xis Safety: Guarantee ISO1600 Zaj duab xis
X-ray Leakage:<0.1μsv (at="" a="" distance="" of5cm="" from="" external="">
X-ray Generator
Tsim direct: Upward
Tsim lub kaum sab xis: 80 degree
Qhov hluav taws xob: 140KV
Anode zog: {{0}}.4 rau 0.5mA
Txias / Lub voj voog ua haujlwm: Roj Txias / 100 feem pua
Duab System
X-ray Sensor: L-Shaped Photodiode Array (ntau lub zog), 12 ntsis sib sib zog nqus
Image Processing: Ntug li, duab ntxiv dag zog, lightening, txo qhov tsaus ntuj, duab
rov qab, duab retrieval.
Duab daws teeb meem: 1024 × 1280 pixels; Duab Grey Qib yog 4096
Kev Ua Duab: 24 ntsis rau kev ua tiav lub sijhawm
Duab cia: Cia 120000 duab hauv lub sijhawm
Zoom: 2,4,8,16,32,64Times Enlarge, Tag nrho cov tshuaj ntsuam tas li
Ntau lub zog sib txawv ntawm cov khoom: cov khoom organic hauv txiv kab ntxwv, inorganic hauv xiav, sib xyaw ntsuab,
Lub zog siab / qis zog: hloov los ntawm lub zog siab mus rau qis zog, Pab txhawm rau txheeb xyuas cov tshuaj thiab cov hmoov tawg
Computer specs
CPU: Intl Core 2 Duo 3400, 2.6GHz, 1MB, L2 Cache thiab 800Mhz FSB Me ntsis version
Motherboards: Intel G41
Bus architecture: Integrated Graphics, 5PCI, 1PCI Express * 1 thiab 1PCI BX xovxwm * 16
Nco: 2GB 1333MHz DDR3 RAM, nrog tsawg kawg 2 tag nrho DIMM qhov. Zoo dua
Hard Disk tsav: 1TB 7200 rpm serial ATA HDD. Zoo dua
Operating System: Windows 7 lossis XP
Saib: 19inch, High Resolution Xim, LCD Accord
Cov ntaub ntawv installation
Ua haujlwm kub / av noo: 0oC-45oC / 20 feem pua -95 feem pua (tsis-condensing)
Cia Kub / Humidity: -20oC-60oC / 20 feem pua -95 feem pua (tsis-condensing)
Lub zog ua haujlwm: 220VAC (± 10%) 50 ± 3Hz
Kev siv hluav taws xob: 1.0 KW (max), 0.3KW (ua haujlwm).
General Specification
Qhov Loj: 505 (W) * 304 (H) mm
Conveyor Ceev: 0.22m/s
Conveyor Max Load: 170kg
Dose per Inspection:<1.7μgy>
Resolution: 38AWG Guarantee 40AWG typical
Spatial daws teeb meem: Qib: dia1.0mm, Vertical: dia1.3mm
Kev nkag mus: 32mm Steel
Zaj duab xis Safety: Guarantee ISO1600 Zaj duab xis
X-ray Leakage:<0.1μsv (at="" a="" distance="" of5cm="" from="" external="">
X-ray Generator
Tsim direct: Upward
Tsim lub kaum sab xis: 80 degree
Qhov hluav taws xob: 140KV
Anode zog: {{0}}.4 rau 0.5mA
Txias / Lub voj voog ua haujlwm: Roj Txias / 100 feem pua
Duab System
X-ray Sensor: L-Shaped Photodiode Array (ntau lub zog), 12 ntsis sib sib zog nqus
Image Processing: Ntug li, duab ntxiv dag zog, lightening, txo qhov tsaus ntuj, duab
rov qab, duab retrieval.
Duab daws teeb meem: 1024 × 1280 pixels; Duab Grey Qib yog 4096
Kev Ua Duab: 24 ntsis rau kev ua tiav lub sijhawm
Duab cia: Cia 120000 duab hauv lub sijhawm
Zoom: 2,4,8,16,32,64Times Enlarge, Tag nrho cov tshuaj ntsuam tas li
Ntau lub zog sib txawv ntawm cov khoom: cov khoom organic hauv txiv kab ntxwv, inorganic hauv xiav, sib xyaw ntsuab,
Lub zog siab / qis zog: hloov los ntawm lub zog siab mus rau qis zog, Pab txhawm rau txheeb xyuas cov tshuaj thiab cov hmoov tawg
Computer specs
CPU: Intl Core 2 Duo 3400, 2.6GHz, 1MB, L2 Cache thiab 800Mhz FSB Me ntsis version
Motherboards: Intel G41
Bus architecture: Integrated Graphics, 5PCI, 1PCI Express * 1 thiab 1PCI BX xovxwm * 16
Nco: 2GB 1333MHz DDR3 RAM, nrog tsawg kawg 2 tag nrho DIMM qhov. Zoo dua
Hard Disk tsav: 1TB 7200 rpm serial ATA HDD. Zoo dua
Operating System: Windows 7 lossis XP
Saib: 19inch, High Resolution Xim, LCD Accord
Cov ntaub ntawv installation
Ua haujlwm kub / av noo: 0oC-45oC / 20 feem pua -95 feem pua (tsis-condensing)
Cia Kub / Humidity: -20oC-60oC / 20 feem pua -95 feem pua (tsis-condensing)
Lub zog ua haujlwm: 220VAC (± 10%) 50 ± 3Hz
Kev siv hluav taws xob: 1.0 KW (max), 0.3KW (ua haujlwm).
Suab nrov:<>
